BSP Hose Fittings

Hydraulic Fitting 29691

Hydraulic Fitting 29691
Hydraulic Fitting 29691
Hydraulic Fitting 29691
Hydraulic Fitting 29691
Hydraulic Fitting 29691

Description

Reviews

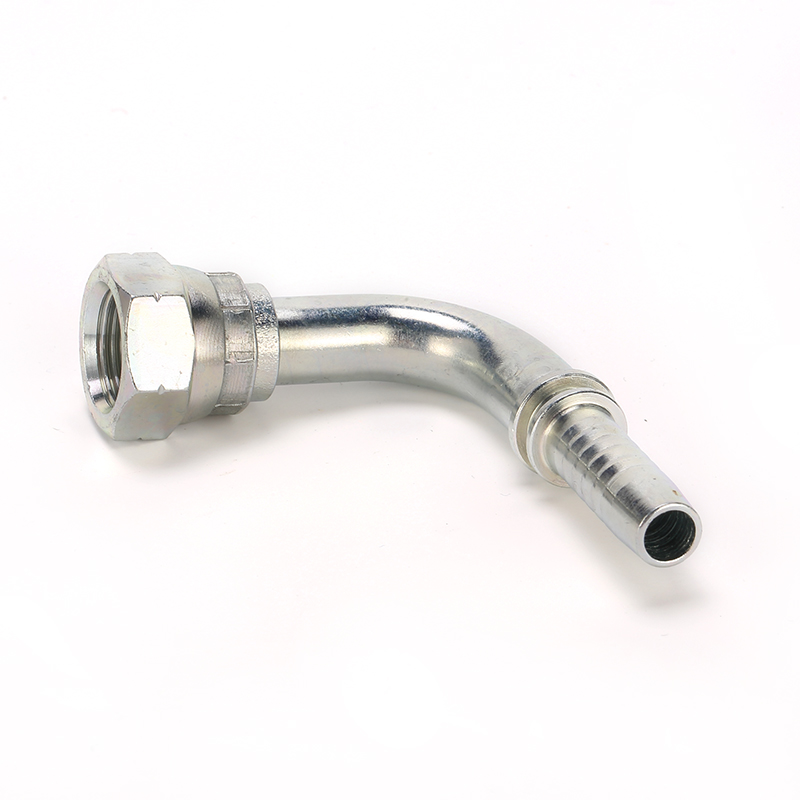

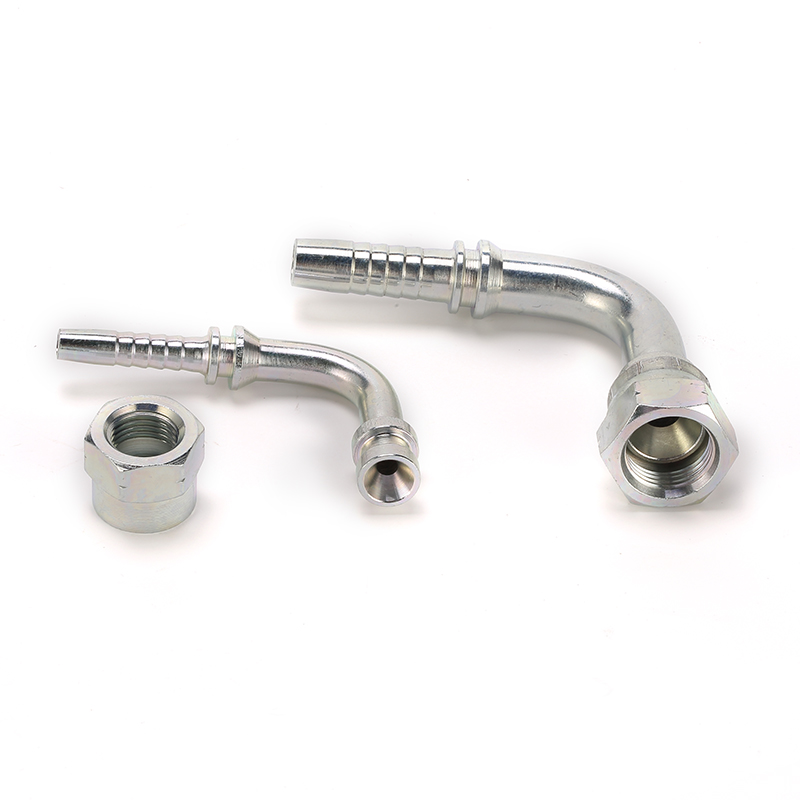

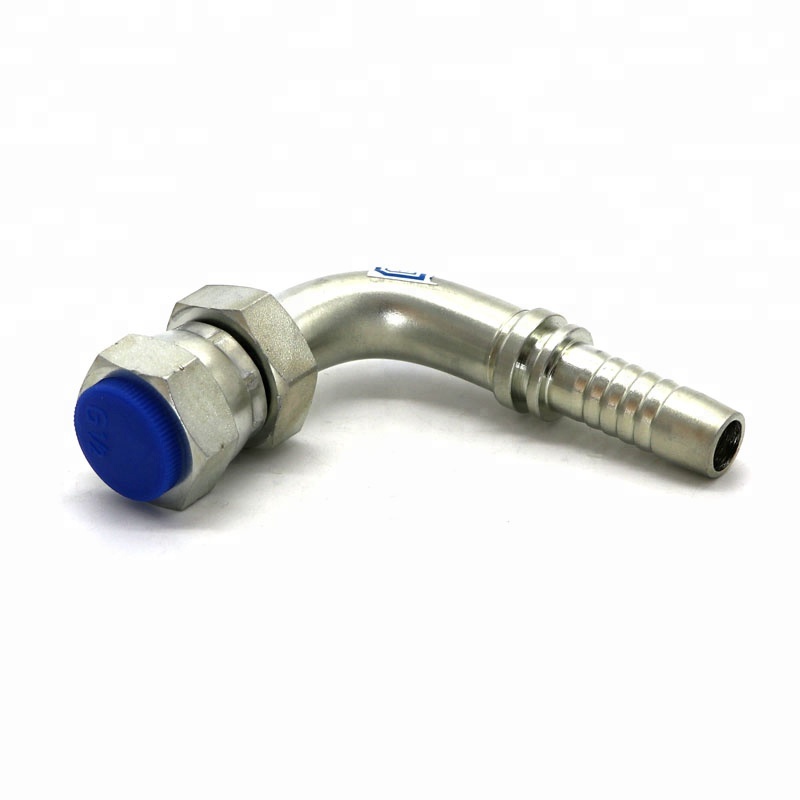

90° JIS GAS Female 60°Cone Seat JIS B8363 hydraulic hose fitting .It could use for braided hoses and spiral hoses . On the other hand , it has different material for customer work condition . Such as :steel , stainless steel 304 and 316  , and else .We are professional manufaturer for hydraulic fitting and ferrule , we could produce the part according to your drawing and sample .
Specifications
PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C H S1 S2
29691-04-04 G1/4"X19 6 4 30 8 38 19 19
29691-04-05 G1/4"X19 8 5 33 8 41 19 19
29691-06-06 G3/8"X19 10 6 35.3 9 45.8 22 22
29691-08-08 G1/2"X14 12 8 41 12 53 27 27
29691-10-10 G5/8"X14 16 10 56.5 11.5 61 30 30
29691-12-12 G3/4’X14 20 12 65.5 13.5 69 32 32
29691-16-16 G1"X11 25 16 76.7 16 76.5 41 41
29691-20-20W G1.1/4"X11 32 20 91.5 18.5 92.5 50 50
29691-24-24W G1.1/2"X11 40 24 109.4 19 110.5 55 55
29691-32-32W G2"X11 50 32 131.8 23 133.8 70 70
Note: 1.For ues with braided hoses.      2.If use with spiral hoses,hose fitting series number is 29692-XX-XX.
About us
Our product includes hydraulic hose fittings, hydraulic adapters, hydraulic hose , hydraulic ferrule , hydraulic manifold . This product is used wide application in all the world. Each type also could be processed in different materials such as brass fittings, steel coating fittings, stainless Fittings 304 and 316.

We have been hydraulic hose fitting supplier in china from 1980, that just a small shop in beginning. We are the earliest hydraulic fitting manufacturer to use European standards in the process. We also have many experiences in the crimp fitting process.

Our crimped fitting is used by European standards, to keep the stable quality. The thread also has more choice in different country standard, especially the NPTF thread have been approved by our customer .we believe our good quality will help our partner develop rapidly.
If you need to buy hose fitting in bulk, please contact us!
