ORFS Hose Fittings

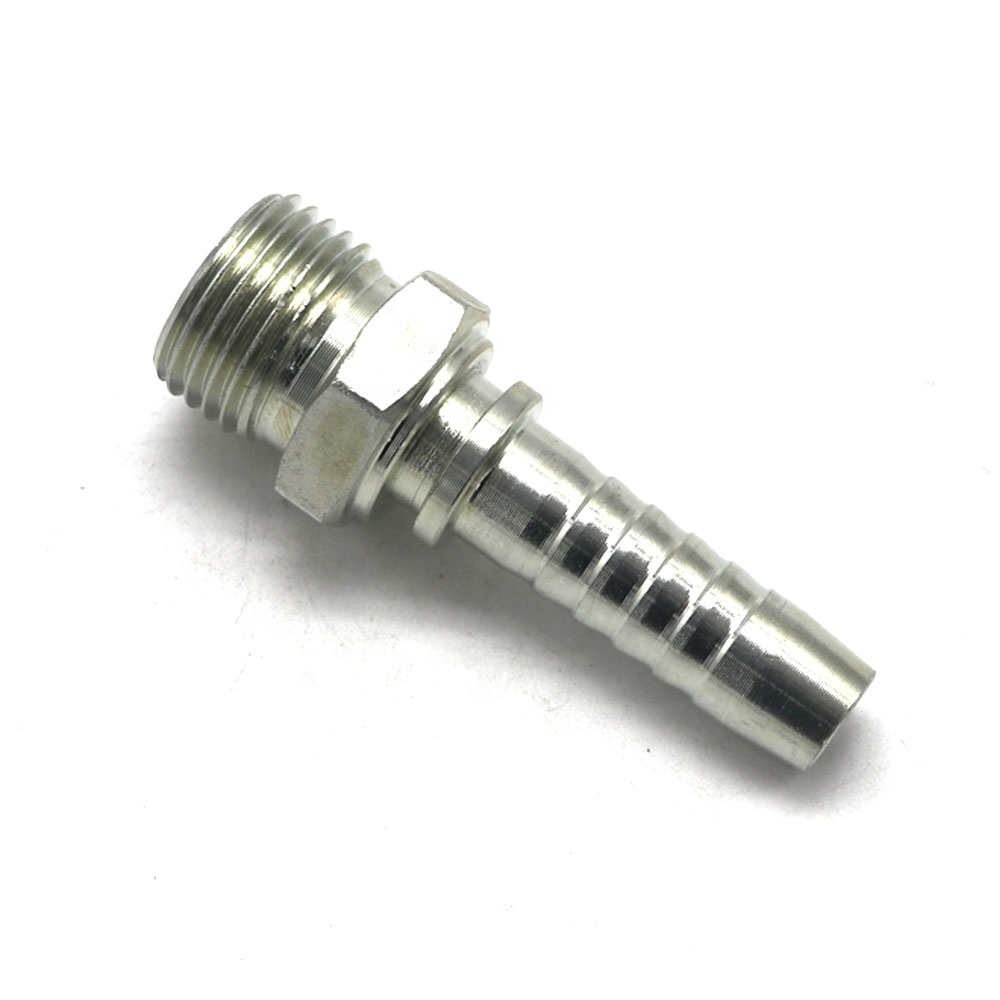

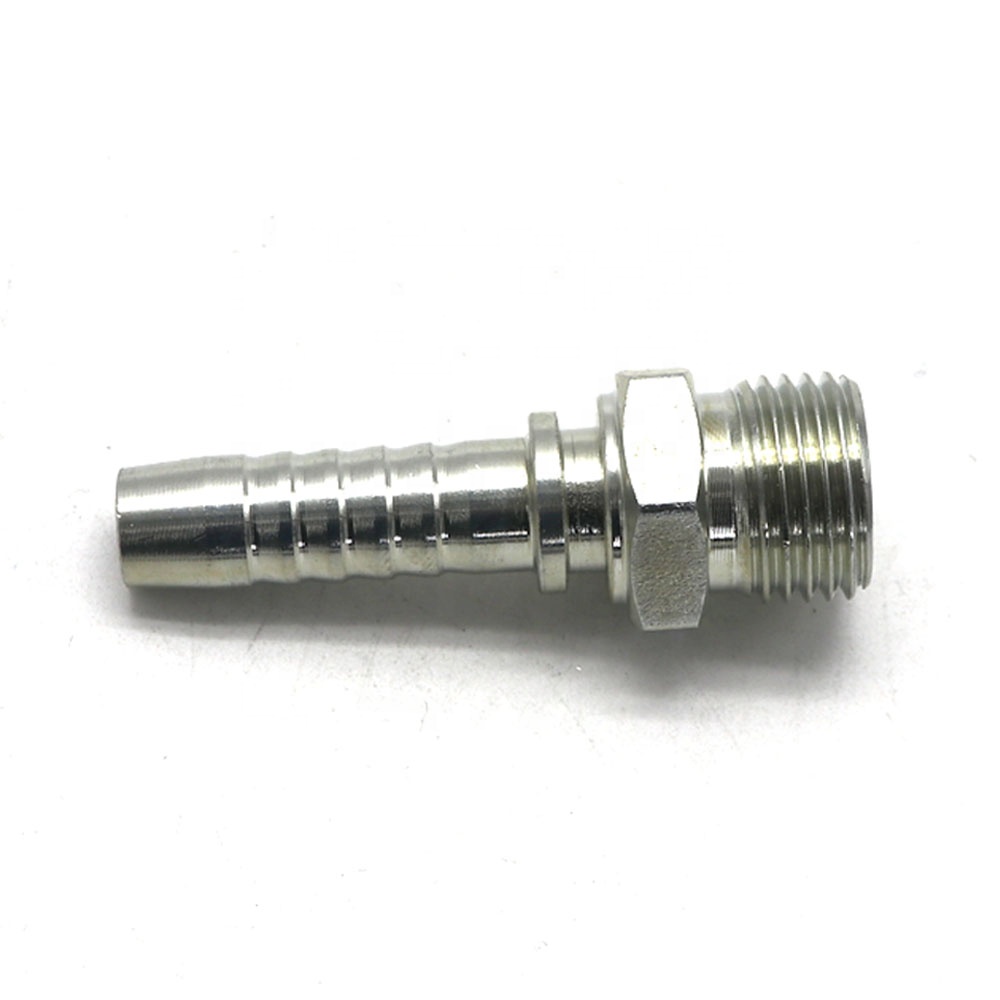

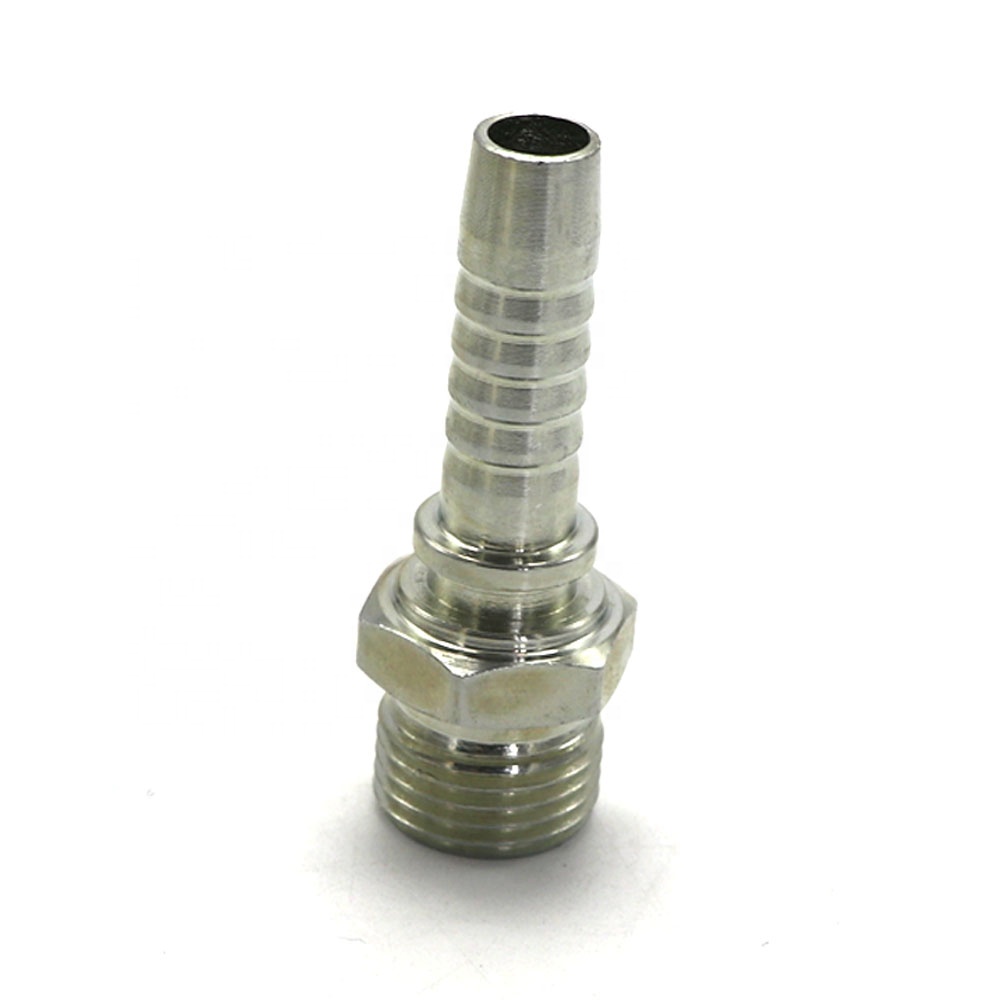

ORFS Hydraulic Fitting 24211

ORFS Hydraulic Fitting 24211
ORFS Hydraulic Fitting 24211
ORFS Hydraulic Fitting 24211
ORFS Hydraulic Fitting 24211
ORFS Hydraulic Fitting 24211

Description

Reviews

ORFS Female Flat Seat ISO 12151-1---SAE J516 hydraulic hose fitting .It could use for braided hoses and spiral hoses . On the other hand , it has different material for customer work condition . Such as :steel , stainless steel 304 and 316  , and else .We are professional manufaturer for hydraulic fitting and ferrule , we could produce the part according to your drawing and sample .
Specifications
PART NO. THREAD E HOSE BORE 尺寸 DIMENSIONS
DN DASH A C S2
24211-04-04 9/16"X18 6 4 22.5 8.5 19
24211-04-05 9/16"X18 8 5 22.5 8.5 19
24211-04-06 9/16"X18 10 6 22.5 8.5 19
24211-06-06 11/16"X16 10 6 23.5 10 22
24211-06-08 11/16"X16 12 8 26 10 22
24211-08-08 13/16"X16 12 8 28 11 27
24211-08-10 13/16"X16 16 10 29 11 27
21211-10-10 1"X14 16 10 33.5 13.5 30
24211-10-12 1"X14 20 12 33.5 13.5 30
24211-12-12 1.3/16"X12 20 12 35 15 36
24211-12-16 1.3/16"X12 25 16 36 15 36
24211-16-20 1.7/16"X12 32 20 39.5 14.8 41
24211-06-04T 11/16"X16 6 4 23.5 10 22
24211-06-05T 11/16"X16 8 5 23.5 10 22
24211-08-05T 13/16"X16 8 5 25 11 27
24211-08-06T 13/16"X16 10 6 25 11 27
24211-10-08T 1"X14 12 8 29.5 13.5 30
24211-12-08T 1.3/16"X12 12 8 30.5 15 36
24211-12-10T 1.3/16"X12 16 10 31.5 15 36
24211-16-12T 1.7/16"X12 20 12 35 14.8 41
24211-16-14T 1.7/16"X12 22 14 34 14.8 41
24211-16-16T 1.7/16"X12 25 16 35 14.8 41
24211-20-16T 1.11/16"X12 25 16 35 15 50
24211-24-20T 2"X12 32 20 36 14.8 60
24211-24-24T 2"X12 40 24 36 14.8 60
24211-20-20W 1.11/16"X12 32 20 39.5 15 50
24211-20-24W 1.11/16"X12 40 24 39.5 15 50
Note: 1.For ues with braided hoses.      2.If use with spiral hoses,hose fitting series number is 24212-XX-XX.
About us
Our product includes hydraulic hose fittings, hydraulic adapters, hydraulic hose , hydraulic ferrule , hydraulic manifold . This product is used wide application in all the world. Each type also could be processed in different materials such as brass fittings, steel coating fittings, stainless Fittings 304 and 316.

We have been hydraulic hose fitting supplier in china from 1980, that just a small shop in beginning. We are the earliest hydraulic fitting manufacturer to use European standards in the process. We also have many experiences in the crimp fitting process.

Our crimped fitting is used by European standards, to keep the stable quality. The thread also has more choice in different country standard, especially the NPTF thread have been approved by our customer .we believe our good quality will help our partner develop rapidly.
If you need to buy hose fitting in bulk, please contact us!
